Ä£ËܸñÕ¤
No. | ÀàÐÍ | H(mm) | AxB(mm) | t1xt2(mm) | ¿×϶ÂÊ(%) | ÀíÂÛÖØ£¨kg/m2) |
1 |
| 13 | 38x38 | 5.8x5.0 | 78 | 6.0 |
2 | 20 | 38x38 | 6.0x5.0 | 68 | 9.8 | |
3 | 25 | 38x38 | 6.4x5.0 | 68 | 12.3 | |
4 | 30 | 38x38 | 6.5x5.0 | 68 | 14.5 | |
5 | 38 | 38x38 | 7.0x5.0 | 68 | 19.5 | |
6 | 50 | 38x38 | 11.0x9.0 | 54 | 42.0 | |
7 | 60 | 38x38 | 11.5x9.0 | 54 | 50.4 | |
8 | 13 | 50x50 | 5.8x5.0 | 82 | 5.8 | |
9 | 25 | 50x50 | 7.5x6.0 | 80 | 11.7 | |
10 | 50 | 50x50 | 8.0x5.0 | 78 | 23.5 | |
11 | 60 | 50x50 | 8.0x5.0 | 78 | 23.5 | |
12 | 25 | 83x83 | 6.5x5.0 | 85 | 5.8 | |
13 | 40 | 83x83 | 7.0x5.0 | 84 | 9.5 | |
14 |
| 15 | 19x19 | 6.0x5.0 | 40 | 10.1 |
15 | 25 | 19x19 | 6.5x5.0 | 40 | 16.8 | |
16 | 30 | 19x19 | 7.0x5.0 | 40 | 18.5 | |
17 | 38 | 19x19 | 7.0x5.0 | 40 | 23.5 | |
18 | 50 | 25x25 | 8.0x6.0 | 55 | 28.5 | |
19 |
| 25 | 25x100 | 6.5x5.0 | 67 | 13.8 |
20 | 30 | 25x100 | 7.0x5.5 | 67 | 15.6 | |
21 | 38 | 25x100 | 8.0x6.0 | 62 | 22.5 | |
22 | 38 | 25x152 | 8.5x6.0 | 63 | 22.5 | |
23 | 38 | 38x152 | 7.0x5.0 | 67 | 16.0 |

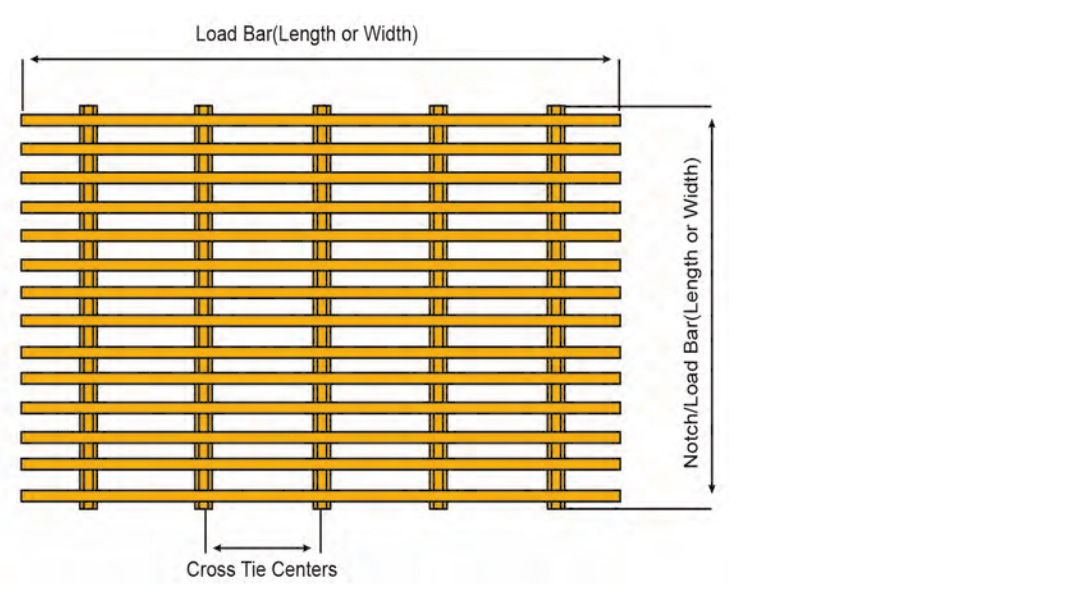

À¼·¸ñÕ¤
ÐͺŠ| Thickness | Bar Width(mm) | Open Space(mm) | Open Area(%) | Appro. Weight(kg/m2) |
1.5"I-6000 | 1.5" | 15 | 23 | 60 | 18 |
1.5"I-5000 | 1.5" | 15 | 15 | 50 | 21.5 |
1.5"I-4000 | 1.5" | 15 | 10 | 40 | 25 |
1.0"I-6000 | 1.0" | 15 | 23 | 60 | 12 |
1.0"I-6000 | 1.0" | 15 | 15 | 50 | 14 |
58I-5000 | 58mm | 15 | 15 | 50 | 24.5 |
58I-6000 | 58mm | 15 | 23 | 60 | 20 |

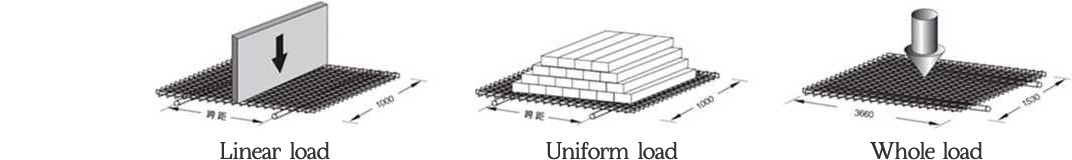

ÔغÉÐαäÊý¾Ý
¿ç¾à | ¹æ¸ñ (mm) | ÏßÐÔÔغÉ(kg/m) | ¾ù²¼ÔغÉ(kg/m2) | ¼¯ÖÐÔغÉ(kg) | ||||||||||||||||
150 | 300 | 450 | 600 | 750 | 240 | 480 | 980 | 1450 | 2450 | 3650 | 4880 | 150 | 300 | 450 | 600 | 750 | 900 | 1050 | ||
300 | 38x38x25 | 0.6 | 1.2 | 1.7 | 2.4 | 2.8 | - | 0.6 | 1.1 | 1.6 | 2.6 | 3.8 | 5.0 | |||||||
38x38x30 | - | 0.6 | 0.9 | 1.3 | 1.6 | - | - | 0.6 | 0.9 | 1.5 | 2.5 | 3.6 | 0.5 | 0.6 | 0.7 | |||||
38x38x38 | - | - | 0.5 | 0.6 | 0.7 | - | - | - | - | 0.5 | 0.7 | 0.9 | ||||||||
50x50x50 | - | - | - | 0.5 | 0.6 | - | - | - | - | - | 0.6 | 0.8 | - | - | - | - | - | - | - | |
25x100x25 | - | 0.6 | 0.8 | 1.0 | 1.3 | - | - | - | 0.6 | 0.9 | 1.2 | 1.7 | - | - | - | - | - | - | - | |
600 | 38x38x25 | 1.5 | 3.1 | 4.5 | 6.0 | 7.2 | 0.9 | 1.8 | 3.6 | 5.4 | 9.1 | 13.6 | 18.1 | - | - | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
38x38x30 | 1.0 | 1.9 | 3.1 | 4.1 | 5.2 | 0.6 | 1.2 | 2.3 | 3.7 | 6.4 | 10.2 | 13.8 | - | - | - | - | 0.5 | 0.6 | 0.7 | |
38x38x38 | 0.5 | 1.0 | 1.6 | 2.1 | 2.7 | - | 0.7 | 1.3 | 2.0 | 3.4 | 5.1 | 6.8 | - | - | - | - | - | - | 0.5 | |
50x50x50 | - | 0.7 | 0.9 | 1.5 | 2.2 | - | 0.5 | 0.8 | 1.1 | 1.8 | 3.6 | 4.8 | - | - | - | - | - | - | - | |
25x100x25 | 1.5 | 3.0 | 4.5 | 6.2 | 7.7 | 0.8 | 1.6 | 3.2 | 4.9 | 8.2 | 12.2 | 16.5 | 0.6 | 1.0 | 1.6 | 2.5 | 3.1 | 3.5 | 3.8 | |
900 | 38x38x25 | 5.3 | 10.8 | 16.5 | - | - | 4.9 | 9.9 | 15.6 | - | - | - | - | - | 0.8 | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 |
38x38x30 | 3.4 | 6.8 | 10.2 | 13.6 | 17.2 | 2.7 | 6.1 | 12.4 | 18.2 | - | - | - | - | 0.6 | 0.8 | 1.0 | 1.3 | 1.5 | 1.7 | |
38x38x38 | 1.6 | 3.2 | 4.9 | 6.6 | 8.2 | 1.5 | 3.0 | 6.2 | 9.3 | 15.6 | - | - | - | - | - | 0.5 | 0.6 | 0.6 | 0.7 | |
50x50x50 | 0.9 | 1.9 | 2.8 | 4.5 | 6.9 | 0.9 | 1.8 | 3.5 | 5.1 | 8.4 | 16.5 | - | - | - | - | - | 0.5 | 0.6 | 0.7 | |
25x100x25 | 4.2 | 7.9 | 11.0 | 14.8 | 18.5 | 3.2 | 5.9 | 11.2 | 16.6 | - | - | - | - | - | - | - | 0.5 | 0.5 | 0.6 | |
1200 | 38x38x25 | 10.4 | - | - | - | - | 9.8 | 16.4 | - | - | - | - | - | 1.4 | 3.2 | 4.5 | 6.0 | 7.0 | 8.5 | 9.9 |
38x38x30 | 4.5 | 9.0 | 13.5 | 18.0 | - | - | - | - | - | - | - | - | 1.0 | 3.0 | 4.2 | 5.6 | 6.8 | 8.0 | 9.0 | |
38x38x38 | 4.2 | 8.6 | 13.5 | 17.5 | - | 5.5 | 11.0 | - | - | - | - | - | 1.2 | 2.4 | 3.5 | 4.9 | 6.2 | 7.2 | 8.6 | |
50x50x50 | 1.7 | 3.5 | 5.3 | 8.9 | 11.1 | 2.1 | 4.4 | 8.9 | 13.4 | - | - | - | 0.5 | 0.7 | 1.0 | 1.6 | 2.0 | 2.4 | 2.8 | |
25x100x25 | 6.3 | 10.3 | 14.3 | - | - | 8.2 | 15.2 | - | - | - | - | - | - | - | - | - | - | |||
1440 | 38x38x25 | - | - | - | - | - | - | - | - | - | - | - | 2.4 | 4.5 | 5.8 | 6.6 | 8.2 | 9.8 | 10.9 | |
38x38x30 | - | - | - | - | - | - | - | - | - | - | - | 1.7 | 3.9 | 4.5 | 6.0 | 7.4 | 8.8 | 9.8 | ||
38x38x38 | - | - | - | - | - | - | - | - | - | - | - | - | 0.5 | 1.3 | 2.0 | 2.5 | 3.1 | 3.7 | 4.3 | |
50x50x50 | - | - | - | - | - | - | - | - | - | - | - | - | 1.0 | 1.7 | 2.1 | 2.5 | 3.0 | 3.4 | ||
